Description
A pair of full-length gas-specific progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth predictable ride across various terrains. Manufactured from high tensile steel our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

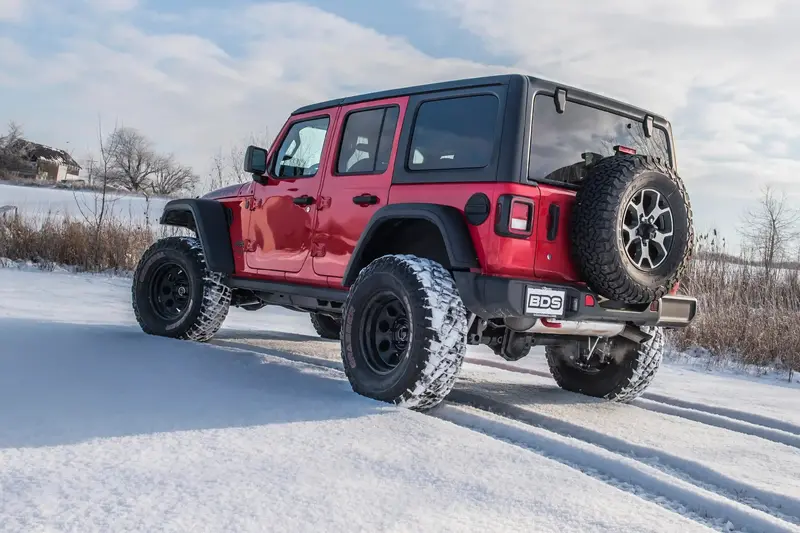

Improve the ride and style of your Jeep Wrangler JL 4 Door with this 2-inch coil spring lift kit from BDS Suspension. Designed to improve stance this kit includes everything necessary to set your truck up right with clearance for up to 35” tires while maintaining the factory rake at an affordable price
The lift kit includes front and rear BDS Pro-Ride Coil Springs, bump stop extensions, front lower control arm cam locks, JKS quicker disconnects to unlock the front suspension’s potential to flex while maintaining quiet on road operation, rear sway bar links, and your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 IFP performance series gas shocks to offer improved damper performance.
Pro-Ride Coil Springs
A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.
Features & Benefits
- ProRide coil springs offer improved ride quality and more articulation
- Sway bar quicker disconnects and extended rear link for improved offroad flex
- Front track bar relocation bracket to correctly position the front axle
- Rear track bar bracket repositions rear axle under vehicle
- Lower cam locks to correct caster for alignment
- Choice of NX2 gas or FOX 2.0 IFP performance series shocks for improved damping
- Allows clearance for 35″ tires
Recommended Tires & Wheels
(Trimming may be required)
- 35 x 12.5 with 17 x 9 and 4.5 in. Backspace
Shock Option
NX2 Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- 1-3/8-inch high-flow piston
- Self-lubricating seals
- Silver powder coat finish
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (IFP) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
FOX 2.5 Performance Series
- 2.5-inch Impact extruded aluminum body
- Internal floating piston (IFP) monotube design
- Increased oil capacity of the shock allows for more heat dissipation.
- Provides less damping fade and more bottom-out control at higher speeds.
- Fully serviceable and resistant to corrosion and harsh environments.
- 1-year Manufacturer’s Warranty
Kit Component List
| 1 | BDS014230 | 2018-2023 Jeep Wrangler JL 2″ Lift Box Kit | |
|---|---|---|---|
| 1 | BDS034240 | 2018-2024 Jeep Wrangler JL 2″ Front Coil Spring Box Kit | |
| 1 | BDS034246 | 2018-2024 Jeep Wrangler JL 2″ Rear Coil Spring Box Kit | |
| 2 | FOX98524177 | 2018-2024 Jeep JL Front, PS, 2.0, IFP, 9.6″, 2-3″ Lift | |
| 2 | FOX98524178 | 2018-2024 Jeep JL Rear, PS, 2.0, IFP, 11.1″, 2-3″ Lift |
Specifications:
| Description_ASC | Non-Rubicon comes from the factory at a lower ride height and will net slightly over 2″ – final stance is the same for all models |
| Description_ASC | Stock wheels cannot be reinstalled without spacers due to rear sway bar interference. |
| Description_ASC | Will not fit 4xe models. |
| Description_ASC | Will not fit Rubicon 392 models. |
| Description_DES | 2018-2023 Jeep JL 2in Lift System – 4Dr FOX |
| Description_EXT | 2018-2023 Jeep JL 2in Lift System – 4Dr FOX |
| Description_FAB | ProRide coil springs offer improved ride quality and more articulation |
| Description_FAB | Sway bar quicker disconnects and extended rear link for improved offroad flex |
| Description_FAB | Front HD track bar to correctly position the front axle and control lateral movement |
| Description_FAB | Rear track bar bracket repositions rear axle under vehicle |
| Description_FAB | Lower cam locks to correct caster for alignment |
| Description_FAB | Choice of NX2 gas or FOX 2.0 IFP performance series shocks for improved damping |
| Description_FAB | Allows clearance for 37″ tires |
| Description_MKT | Improve the ride and style of your Jeep Wrangler JL 4 Door with this 2-inch coil spring lift kit from BDS Suspension. Designed to improve stance this kit includes everything necessary to set your truck up right with clearance for up to 35″ tires at an affordable price. |
| Description_MKT | The lift kit includes front and rear BDS Pro-Ride Coil Springs bump stop extensions front lower control arm cam locks JKS quicker disconnects to unlock the front suspension’s potential to flex while maintaining quiet on road operation rear sway bar links and your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 IFP performance series gas shocks to offer improved damper performance. |
| Description_MKT | Pro-Ride Coil Springs |
| Description_MKT | A pair of full-length gas-specific progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth predictable ride across various terrains. Manufactured from high tensile steel our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind. |
| Description_SHO | Suspension lift kit |
| Description_DEF | Suspension Lift Kit |
