Binks A320 Air Motor Overhaul Kit (250682)

Description

Air Motor Overhaul Kit

Manufacturer: Binks

Part #: 250682

Description: Air Motor Overhaul Kit.

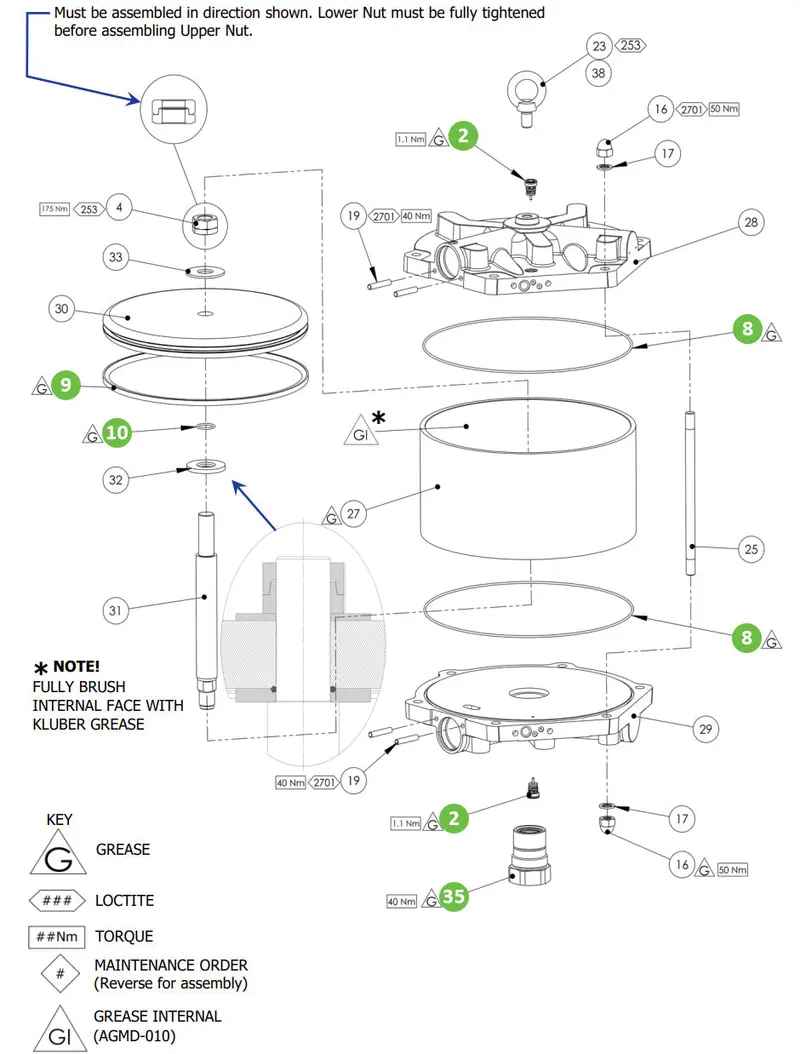

Ref. No.	Part No.	Description	Qty
1	0114-014774	MINI BLOW-OFF VALVE, 8 BAR	1
2*+	0115-010037	POPPET ASSEMBLY	2
3*+	0115-010051	O-RING, Ø4 x 2	4
4	0115-010348	LOCKNUT, M24 x 1.5	1
5	0115-010443	VALVE MUFFLER	2
6*+	0115-010463	QEV PISTON	2
7	0115-010471	MAIN VALVE ASSEMBLY	1
8*	162738	O-RING, Ø327 x Ø3	2
9*	162739	PISTON SEAL	1
10*	161451	O-RING, Ø23.47 x 2.62	1
11*	162765	O-RING, Ø46 x 2	2
12*+	162766	O-RING, Ø13 x 2	2
13	164838	RIVET	2
14	165108	SPRING WASHER, M8	4
15	165567	CAP HEAD SCREW, M10 X 50	4
16	165981	DOME NUT, M14	12
17	165982	SPRING WASHER, M14	12
18+	165991	BUTTON HEAD CAP SCREW, M5 x 8	4
19	165994	STUD, M8	4
20	177000	BUTTON HEAD CAP SCREW, M8x12	2
21	192049	HEX NUT, M8	4
22	192147	NAMEPLATE	1
23	193689	EYE BOLT, M16	1
24	192509	SILENCER, 1.5″	1
25	193150	AIR MOTOR TIE ROD	6
26	193159	EXHAUST MANIFOLD ASSEMBLY	1
27	193164	CYLINDER	1
28	193165	UPPER END CAP	1
29	193166	LOWER END CAP	1
30	193167	PISTON	1
31	193168	PISTON ROD	1
32	193169	WASHER, Ø60	1
33	193170	WASHER, Ø60	1
34	193247	COVER PLATE	1
35*	193249	MOTOR ROD CARTRIDGE ASSEMBLY	1
36	193320	QEV CAP	2
37	193363	EXHAUST GASKET	2
38	165100	SPRING WASHER, M16	1

NOTE:

* – Parts included in the Air Motor Overhaul Kit 250682

+ – Parts included in the Control Valve Kit 250647

Main Valve Assembly Parts List 0115-010471

Ref. No.	Part No.	Description	Qty
50	0115-010456	MANIFOLD ASSEMBLY	1
51	0115-010454	VALVE BLOCK	1
52+	0115-010424	SPOOL AND SLEEVE ASSEMBLY	1
53*+	0115-010460	GASKET	1
54+	0115-010431	SPACER	2
55+	0115-010427	BUMPER	2
56+	0115-010425	VALVE BLOCK END CAP	2
57+	0115-010428	MAGNET	2
58*+	162767	O-RING, Ø30 x 2	2
59+	165990	CAP HEAD SCREW, M8 x 55	4
[52]*	162774	O-RING, Ø23.52 x 1.78	6

* – NOTE: Spool and sleeve assembly (52) is a matched set and cannot be interchanged with other spool and sleeve assemblies.

* – Parts included in the Air Motor Overhaul Kit 250682

+ – Parts included in the Control Valve Kit 250647

Binks charges a significant fee to drop ship orders of less than $250.00. Therefore, any parts orders under $250.00 will be added to our stocking orders and then reshipped to you. If you need these products faster you can contact us for an expedited drop shipping fee.

Contact: 503-545-3176
