AX160 Repair Kit
Manufacturer: Binks
Part #: 250731
Description: AX160 Repair Kit. References 6, 8, 10, 13, 14, 19, 20, 22, 27 & 28.

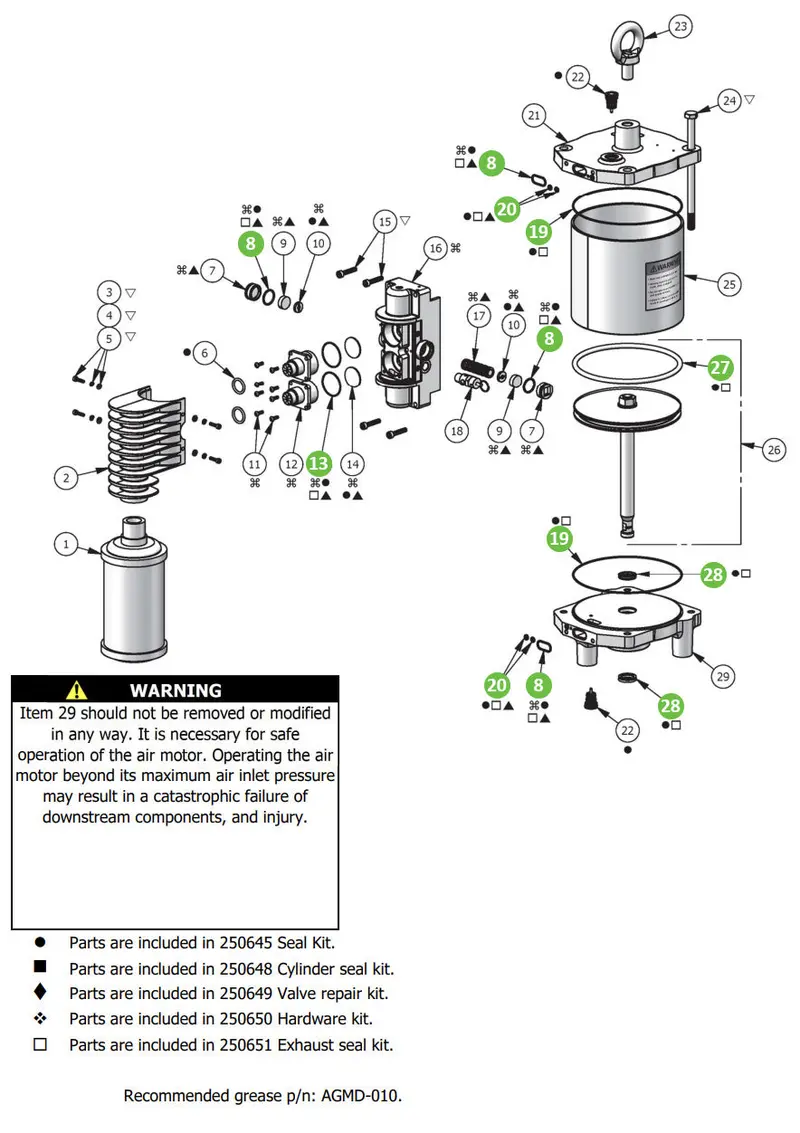

| Ref. No. | Part No. | Description | Qty |
| 1 | 192821 | MUFFLER | 1 |
| 2 | 193825 | EXHAUST ADAPTER | 1 |
| 3 | 165528 | SOCKET HEAD CAP SCREW | 4 |
| 4 | 165971 | SPRING LOCK WASHER | 4 |
| 5 | 165970 | PLAIN WASHER | 4 |
| 6● | 161995 | O-RING | 2 |
| 7∆+ | 0115-010018 | VALVE BLOCK END CAP | 2 |
| 8∆●+◊ | 0115-010049 | O-RING | 4 |
| 9∆+ | 0115-010017 | MAGNET | 2 |
| 10∆●+ | 0115-010016 | BUMPER | 2 |
| 11∆ | 0115-010073 | BUTTON HEAD CAP SCREW | 8 |
| 12∆ | 192813 | QUICK EXHAUST VALVE CAGE | 2 |
| 13∆●+◊ | 0115-010021 | O-RING | 2 |
| 14∆●+ | 0115-010020 | DIAPHRAGM | 2 |
| 15 | 163920 | SOCKET HEAD CAP SCREW | 4 |
| 16∆ | 193817 | VALVE BLOCK | 1 |
| 17∆+ | 0115-010015 | SPOOL AND SLEEVE ASSEMBLY | 1 |
| 18 | 0114-014774 | 8 BAR [116 PSI] SAFETY VALVE | 1 |
| 19●◊ | 162819 | CYLINDER SEAL | 2 |
| 20●+◊ | 0115-010051 | O-RING | 4 |
| 21 | 193826 | UPPER END CAP | 1 |
| 22● | 0115-010037 | POPPET ASSEMBLY | 2 |
| 23 | 193689 | EYE BOLT | 1 |
| 24 | 162818 | HEX HEAD CAP SCREW | 4 |
| 25 | 194073 | CYLINDER | 1 |
| 26 | 193822 | PISTON | 1 |
| 27●◊ | 162817 | PISTON SEAL | 1 |
| 28●◊ | 193820 | U-CUP SEAL | 2 |
| 29 | 0115-010123 | LOWER END CAP | 1 |
NOTE:
∆ Items available separately or as a complete assembly: 193818
● Parts are included in 250731 Air Motor Repair Kit.
+ Parts are included in 0115-010226 Air Motor Valve Repair Kit.
◊ Parts are included in 250721 Air Motor Seal Kit.
Literature:
- Manual
Binks charges a significant fee to drop ship orders of less than $250.00. Therefore, any parts orders under $250.00 will be added to our stocking orders and then reshipped to you. If you need these products faster you can contact us for an expedited drop shipping fee.
Contact: 503-545-3176
