Devilbiss 84500X Series Low-Pressure Material Flow Regulator

Description

Low Pressure Material Regulator

Manufacturer: DeVilbiss

Part #s: 84500X

Description: Low Pressure Material Regulator

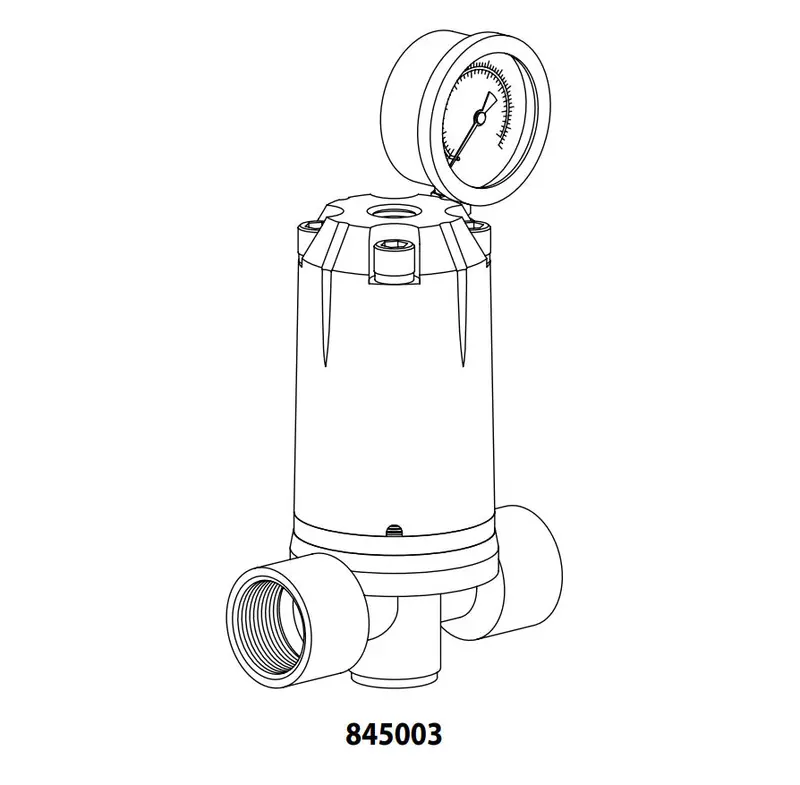

• Part # 845000 = Back Pressure, 300 Series Stainless Steel, Tungsten Carbide seats, 0.2500″ Ball Size, 3/8 – 18 NPTF
• Part # 845001 = Downstream, 300 Series Stainless Steel, Tungsten Carbide seats, 0.2500″ Ball Size, 3/8 – 18 NPTF
• Part # 845002 = Back Pressure, 300 Series Stainless Steel, Tungsten Carbide seats, 0.2500″ Ball Size, 3/8 – 18 NPTF
• Part # 845003 = Back Pressure, 300 Series Stainless Steel, Tungsten Carbide seats, 0.5000″ Ball Size, 1-1/4 – 11-1/2 NPTF
• Part # 845004 = Downstream, 300 Series Stainless Steel, Tungsten Carbide seats, 0.1875″ Ball Size, 3/8 – 18 NPTF

Specifications:

Parts and Accessories:

Item No.	Part No.	Description	Qty
1		Housing	1
2		Bolt (7/16” – 20 x 5”)	4
3		Washer (7/16” i.d.)	4
4		Washer (1.162” o.d. x 0 .125” thick)	1
5	873330	Thrust Bearing (1.173” o.d.	1
6	873331	Adjusting Screw (5/8” – 24, left hand)	1
7		Plate	1
8	873332	Adjusting Nut	1
9	873043 873044 873502	Spring – 845000, 845003 (gray, 50 – 200 in. lbs) 845001, 845002 (red, 100 – 800 in. lbs) 845004, 845005 (orange, 20 – 60 in. lbs)	1
10		Screw (#10 – 32 x 7/8”)	1
11		Lockwasher (0.196” i.d.)	1
13		Small Plate	1

14		Button	1
15		Plate	1
16		Diaphragm (0.062” thick, black)	1
17		Diaphragm (0.020” thick, white)	1
18		“O” Ring (3/32” x 1-7/8” o.d.)	1
20		3/8” Allen Wrench (not shown)	1
21		Flush-Out Plug (not shown) (used on models 845001 and 845004 only)	1
22	873561 873562	Spring Stop 845004, 845005 (2.265” long) 845001 (2.359” long)	1
23		Long Nipple (1/4 – 18 NPT x 4”)	1
24		Coupling (1/4 – 18 NPT x 1-3/8”)	1
25	873041 873042 873503	Gauge – models 845000 and 845003 (0 – 300 p.s.i. / 0 – 20 bar) models 845001 and 845002 (0 – 1000 p.s.i. / 0 – 70 bar) models 845004 and 845005 (0 – 60 p.s.i. / 0 – 4 bar)	1
26		Stud (7/16” – 20 x 4”) (not shown)	1
27		Nut (7/16” – 20) (not shown)	2
28		Lock Washer (7/16”) (not shown)	1
40	873048 873046 873047	Valve Stem (models 845003) (models 845001 and 845004) (models 845000, 845002 and 845005)	1
41		“O” Ring (models 845003) (3/32” x 1-7/8” o.d.) (models 845000, 845001, 845002, 845004 and 845005) (1/16” x 5/8” o.d.)	1
42		Seat	1
43		Ball (models 845001 only) (0.2500” dia.) (models 845004 only) (0.1875” dia.)	1
44		Spring (models 845001 and 845004 only)	1
45	873058 873045	Flow Tube (models 845003) (models 845000, 845001, 845002, 845004 and 845005)	1
46		“O” Ring (models 845003) (0.116” x 1.279” o.d.) (models 845000, 845001, 845002, 845004 and 845005) (0.097” x 0.949” o.d.)	1
47	863002 863006	Seat Plug (includes item 46) (models 845000, 845001, 845002, 845004 and 845005) (models 845003)	1
48		Base	1
52		Pipe Plug (3/8 – 18 NPT) (except models 845003)	1



Parts Kits:

• 863001 Valve Kit (for models 845000, 845002 and 845005)
• 863003 Diaphragm Repair Kit (for all models)
• 863004 Valve Kit (for model 845003)
• 863005 Valve Kit (for model 845001)
• 863007 Valve Kit (for model 845004)
• 863010 Rebuild Kit (for model 845001)
• 863011 Rebuild Kit (for models 845000, 845002 and 845005)
• 863012 Rebuild Kit (for model 845003)
• 863018 Rebuild Kit (for model 845004)

Literature:

• Manual

Binks, which DeVilbiss is a part of, charges a significant fee to drop ship orders of less than $250.00. Therefore, any parts orders under $250.00 will be added to our stocking orders and then reshipped to you. If you need these products faster you can contact us for an expedited drop shipping fee.

Contact: 503-545-3176
