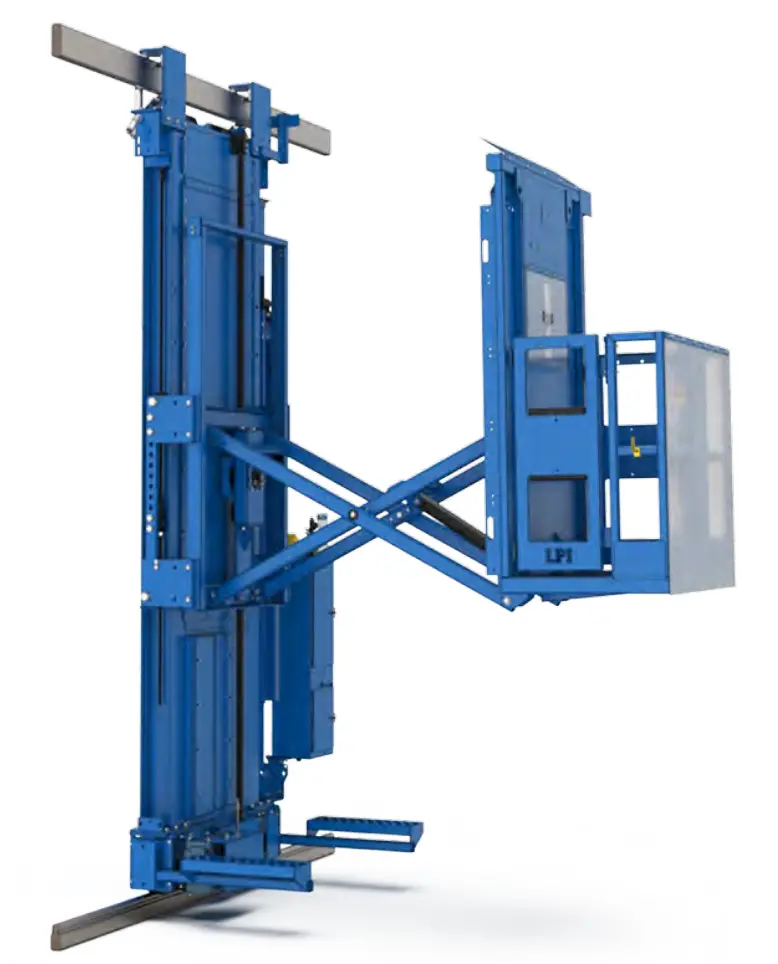

Extended Reach 3-Axis Blast Lift BL
Manufacturer: LPI Lift Systems
Part Number: BL-XXX
Description: Designed to withstand the harsh environment of grit, sand, and shot blast booths. Featuring sealed components and lift mast along with heavy duty components, the lifts can replace ladders providing increased safety and productivity. This design can also be used for extended height applications.
Features:
- Raised platform height: 6’ to 29′ (standard)
- Retracted dimension: 4’-6″(minimum)
- Extended dimension: 13′-4″
- Operator platform capacity: 400 lbs.
- Sealed mast construction
- Pneumatic/hydraulic power unit
- Includes in-line Filter/Regulator/Lubricator
- Standard platform: 48” wide x 30” deep
- Self-closing/self-latching entry gates
- 1-Axis & 2-Axis models available
- Blast hose hook to attach hose to platform
Controls / Connection:
- Operator controls on front rail of platform
- Hand controls for Y-Axis, Z-Axis, & E-stop
- Foot control for X-Axis
- Base control to raise and lower platform
- Auxiliary unoiled air connection in platform
- Lift requires a clean, dry air supply (80 scfm @ 100 psi with a 40°F dew point)
Travel Speed:
- X-Axis (left/right): Variable up to 40 fpm
- Y-Axis (in/out): 15 fpm
- Z-Axis (up/down): 15 fpm
Dimensions:
 |
 |
You will be contacted with a freight quote for shipping. Forklift may be required at time of delivery
