Description

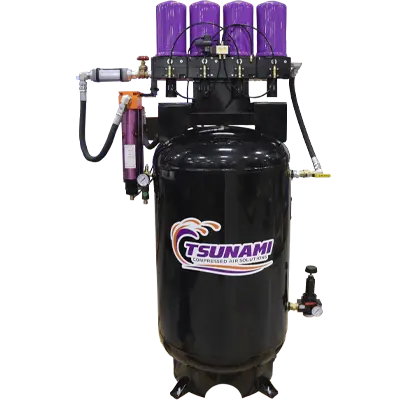

Tsunami Dust Collector Dryers
Manufacturer: Tsunami
Part Number: 21999-1031, 21999-1032
Tsunami’s world-class drying technology is configured specifically for dust collectors to offer a clean air package designed to maximize system performance and reduce operating costs like nothing before.
Key features
- 2-stage Pre-filtration; Water Separator, Oil Coalescing Filter
- Molecular Sieve Desiccant
- Solenoid Valve Timer
- Automatic Drains
- Purge Exhaust Mufflers
- High Flow Outlet Regulator
- Air Quality Test Port
- Flow Meter & Globe Valve
- Heater Pads available for cold temp applications
- 60-Gallon/80-Gallon Storage Tank
Key Benefits
- Low relative humidity – down to .01% RH
- Dew points down to -80°F
- Extend bag life
- Increase facility efficiency
- Easy. low-cost maintenance – under $100/ year average
| Part Number | 21999-1100 | 21999-1100-MM |
| Horsepower | 5 | 5 |
| Max CFM: | 17 | 17 |
| Port Size (NPT): |
1/4″ |
1/4″ |
| Drain: | Float | Pneumatic |
| Max PSI: | 175 PSI | 175 PSI |
| Max Temp: | 150 Degrees F | 150 Degrees F |
| Dimensions: |
27″ X 21″ X 13″ |
27″ X 21″ X 13″ |
Site Navigation –
Literature –
Dust Collector Dryer Cut Sheet
Spare Parts –
| Part | Part Number | Description |
| A | 21999-0707 | Piston Replacement Kit for Regenerative Dryers |
| B | 21999-0976 | Tsunami Tower Replacement Pure 1, 3, 5 |
| B | 21999-0976-BK | Tsunami Tower Replacement Pure 1, 3, 5 – Black |
| B | 21999-0349 | Tsunami Tower Replacement Pure 7, 10, 20, 30 & Ultra Dryers |
| B | 21999-0349-BK | Tsunami Tower Replacement Pure 7, 10, 20, 30 & Ultra Dryers Black |
| C | 21999-0672-10 | PLC Controller -10 HP Regenerative Dryer |
| C | 21999-0672 | PLC Controller -15 HP+ Tsunami Regenerative Dryer |
| C | 21999-0672-BK | Custom Dryer PLC – No Drains |
| 21999-0951 | Pneumatic Timer Control – Two Outputs | |
| 21999-0714 | PLC Power Supply for Tsunami Regenerative Dryer | |
| 21999-0941 | Tsunami Timer Valve Assembly | |
| 21999-0797 | Tsunami Air Valve Replacement | |
| 21999-0504 | 12v DC Timer / Coil Assembly | |
| 21999-1012-24 | 24v DC Timer / Coil Assembly | |
| 610928-01 | 110v AC Timer / Coil Assembly | |
| 610934-01 | 220v / 230v AC Timer / Coil Assembly | |
| 21999-0650 | Tower Mounting Stud / Dryer Regen. Valve – Pure 7, 10, and Ultra Series Dryers | |
| 21999-1108 | Tower Mounting Stud / Dryer Regen. Valve – Pure 1, 3, & 5 Series Dryers | |
| 940825 | Muffler Replacement – Pure 1, 3, 5, 7, Only | |
| 21999-0700 | Muffler Replacement – Pure 10 and Ultra Series | |
| 21999-1046 | Muffler Core Replacement (10pc Minimum Order Quantity – Pure-10 & Ultra Dryers Only) | |
| 21999-1042 | Tsunami Dryer Heater 110/120v AC, 700W | |
| 21999-0890 | Tsunami Dryer Heater 12v DC, 120W | |
| 21999-0937 | Tsunami Dryer Heater 24v DC, 120W | |
| 21999-0712 | Energy Saver Kit (Ultra dryer accessory only) | |
| 21999-1038 | Modular Dryer Subassembly Replacement – Ultra / Pure-10-20-30 |
