Ultra-Containment Berm® – Foam Wall Model (4-Inch Walls) – Copolymer 2000
Manufacturer: UltraTech
Part Number: See Table
Description: Low profile design is perfect for equipment maintenance and portable drum containment.
The Ultra-Containment Berm – Foam Wall Model provides containment for smaller spills, leaks, and drips. The 4” high sidewalls may mean a lesser capacity than its 12” high counterparts but it also means versatility and convenience.

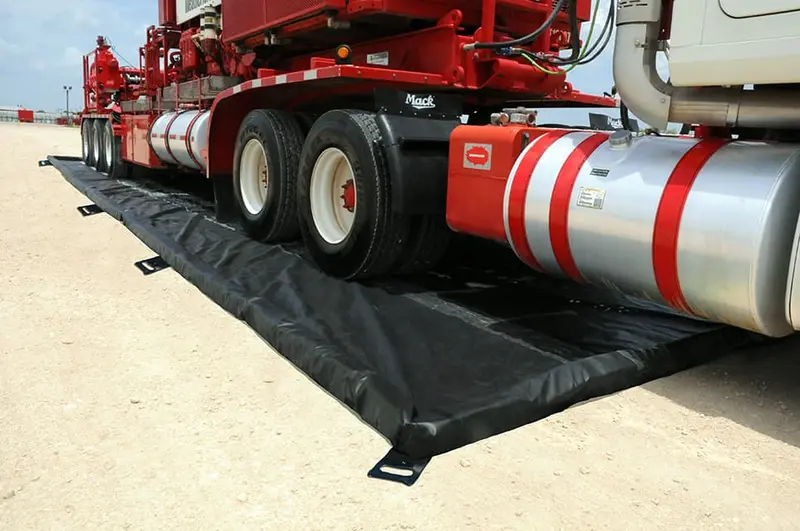

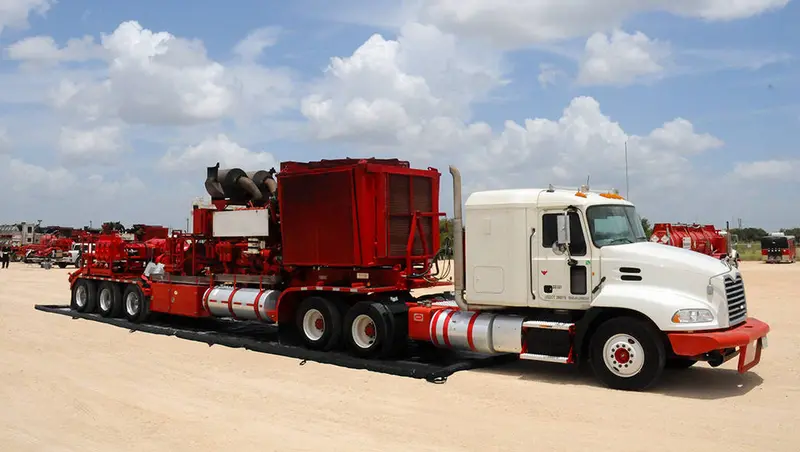

The foam wall model has true drive-in and drive-out capability and requires no setup other than the initial deployment.
Features:
- Capture nuisance leaks and spills from vehicles, oily equipment, tanks and drums.

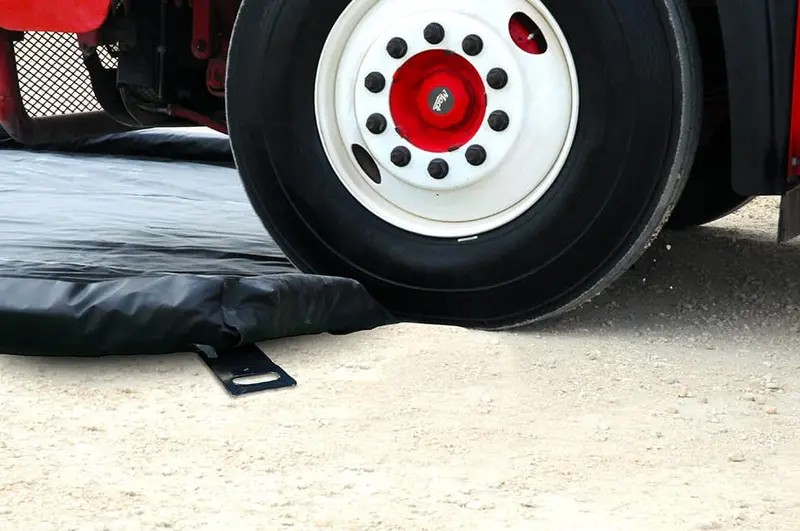

- Soft foam sidewall easily compresses for convenient loading and off-loading.
- Choose from several standard sizes to meet your spill containment needs – custom sizes also available.
- Low, 4-inch sidewall contains spills – keeps plant floors and soil free from contamination.
- No set-up required – simply unfold for quick deployment. Folded units require minimal storage space.
- Available in Copolymer-2000 or PVC (24 mil) – withstands the rigors of industrial and construction applications.
- Built-in handles help with transport and placement.
Specifications:
| Part No. | Dimensions ft. (m) | Containment Capacity gal. (L) | Weight lbs. (kg) |
| 8568 | 3 x 3 x .3 (.9 x .9 x .1) | 22 (83) | 20 (9.7) |
| 8570 | 6 x 4 x .3 (1.8 x 1.2 x .1) | 59 (223.3) | 27 (12.2) |
| 8571 | 8 x 8 x .3 (2.4 x 2.4 x .1) | 159 (601.9) | 45 (20.4) |
| 8572 | 10 x 10 x .3 (3 x 3 x .1) | 249 (942.6) | 61 (27.7) |
| 8573 | 20 x 10 x .3 (6.1 x 3 x .1) | 498 (1885.1) | 101 (45.8) |
| 8574 | 30 x 10 x .3 (9.1 x 3 x .1) | 748 (2831.5) | 137 (62.1) |
| 8575 | 40 x 10 x .3 (12.2 x 3 x .1) | 997 (3774.1) | 177 (80.3) |
| 8576 | 50 x 10 x .3 (15.2 x 3 x .1) | 1246 (4716.6) | 217 (98.4) |
| 8577 | 12 x 12 x .3 (3.7 x 3.7 x .1) | 359 (1359) | 82 (37.2) |
| 8578 | 16 x 12 x .3 (4.9 x 3.7 x .1) | 478 (1809.4) | 97 (44) |
| 8579 | 20 x 12 x .3 (6.1 x 3.7 x .1) | 598 (2263.7) | 116 (52.6) |
| 8580 | 30 x 12 x .3 (9.1 x 3.7 x .1) | 897 (3395.5) | 159 (72.1) |
| 8581 | 35 x 12 x .3 (10.7 x 3.7 x .1) | 1047 (3963.3) | 184 (83.5) |
| 8582 | 40 x 12 x .3 (12.2 x 3.7 x .1) | 1196 (4527.4) | 203 (92.1) |
| 8583 | 50 x 12 x .3 (15.2 x 3.7 x .1) | 1496 (5663) | 249 (112.9) |
| 8584 | 60 x 12 x .3 (18.3 x 3.7 x .1) | 1795 (6794.8) | 293 (132.9) |
| 8585 | 72 x 12 x .3 (21.9 x 3.7 x .1) | 2154 (8153.8) | 348 (157.9) |
| 8586 | 15 x 15 x .3 (4.6 x 4.6 x .1) | 561 (2123.6) | 104 (47.2) |
| 8587 | 20 x 15 x .3 (6.1 x 4.6 x .1) | 748 (2831.5) | 132 (59.9) |
| 8588 | 30 x 15 x .3 (9.1 x 4.6 x .1) | 1122 (4247.2) | 182 (82.6) |
| 8589 | 40 x 15 x .3 (12.2 x 4.6 x .1) | 1496 (5663) | 232 (105.2) |
| 8590 | 50 x 15 x .3 (15.2 x 4.6 x .1) | 1870 (7078.7) | 281 (127.5) |
| 8591 | 66 x 15 x .3 (20.1 x 4.6 x .1) | 7405 (28031) | 388 (176) |
| 8592 | 72 x 15 x .3 (21.9 x 4.6 x .1) | 2692 (10190.3) | 393 (178.3) |
You will be contacted with a freight quote for shipping
