Description

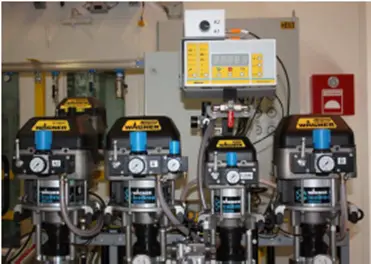

Wagner Twin Control 35-70

Manufacturer: Wagner

Part Number: 2338758 or 2367426 (Acid Catalyst)

Description:

Includes Atex version with a turbine, frame with rollers, and mechanic pressure regulator

Does not Include but is Recommended with Order:

• 2328611 – Air Coat Regulator
• 2329023 – Combo Relief Valve
• 5 Gallon Acid Siphon
• 253426 – M36 Nut (For Booster Feed)
• 366955 – Suction Nipple (For Booster Feed)
• 2322693 – M36 Collars (For Booster Feed)
• Special Acid Relief Valve
• 2324110 – 5/8 in. Suction Hose x 3 or 2332169 – 5L Hopper set x 3
• 394338 – Wagner Seal tip
• 394339 – Wagner Nozzle Gasket
• 379xxx – GM4700 Air Assist Tip
• 321xxx – GM4700 PLUS Air Assist Tip
• 23157xx – GM4700 Cage Filter
• 2313494 – Wagner LV Plus Red Air Cap for GM4700 AC Gun
• 2313497 – Wagner HV Plus BLUE Air Cap for GM4700 AC Gun
• 2309706 – Twin Hose Set – 25 ft Air & Fluid Hose or 2309634 50 ft Air & Fluid Hose
• 9992504 – Throat Seal Lubricant – 250ml
• GM4700-BL413 – GM 4700 AC Gun with Air Cap and .413 Tip

User Friendly

TwinControl will show you how easy it is to handle 2K materials. Connect the unit, set the main parameters, push the Start button – and start working!

High Reliability

TwinControl is perfect even for critical applications such as abrasive materials, reactive paints, high viscosity materials, and high delivery rates. The special software prevents off-ratio spraying and controls all working parameters to ensure a consistent and precise mixing quality

Fast Atomization

• No reworks or rejects due to off-ratio spraying
• No mixed material left unused. Mix only what is required
• Reduction in time for manual cleaning and mixing procedures
• Increase in productivity
• Substantial reduction in paint waste and solvent consumption
• Reduced maintenance
• Material consumption monitoring

Main functions

• Real-time mixing control with off-ratio alarm
• Pot-life monitoring with alarm
• Automatic flushing process
• Real-time delivery rate display
• Mixing accuracy display
• Material consumption monitoring
• Pump diagnosis system: pre-alarm and alarm in case of pump malfunction
• Gun Flush Box connection optional

Application Areas

• Trucks, buses, and other commercial vehicles
• Protective coatings
• Agriculture, construction, and earth-moving vehicles
• Metal industry
• Rail cars
• Wind turbines
• Wood industry
• Plastic industry

SPECIFICATIONS:
INPUT VOLTAGE (NOT ATEX) 115 – 230 VATEX – No Power Required – Runs on Compressed Air
INPUT FREQUENCY (NOT ATEX) 50 – 60 HzATEX – No Power Required – Runs on Compressed Air
AIR INLET PRESSURE 5,0 – 8,0 bar, 73 – 116 PSI
AIR INLET CONNECTION F-G ½”
MIXING ACCURACY ± 2%
MATERIAL PRESSURE 250 bar, 3626 PSI
VOLUME FLOW AT A 1:1 MIXING RATIO (MAX.) 4.2 l/min
VOLUME FLOW AT A 4:1 MIXING RATIO (MAX.) 2.6 l/min
VOLUME FLOW AT A 10:1 MIXING RATIO (MAX.) 2.4 l/min
VOLUME FLOW AT A 20:1 MIXING RATIO (MAX.) 2.2 l/min
MATERIAL INLET M-M 36×2
MATERIAL OUTLET M-G 3/8”
MAX. MATERIAL PRESSURE AT PUMP INLET 5 bar, 73 PSI
MATERIAL TEMPERATURE 5 – 60 °C, 41.0 – 140.0 °F
AMBIENT TEMPERATURE 5 – 40 °C, 41 – 104 °F
MATERIAL PH  3,5 – 9,0 pH(NOTE: Not for use with Acid Catalyst use in Wood Coatings. There is a special high pH edition for this application.)

Available with 2nd “A” Pump
