Description
In the rear BDS offers a heavy duty fabricated lift block to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts and precision tuned NX2 Nitro or premium FOX 2.0 Performance Series shocks.

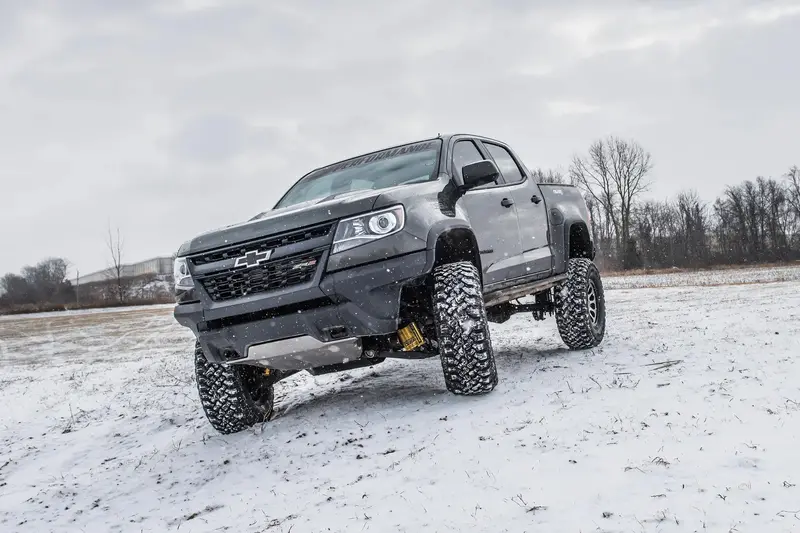

Want to lift your Colorado ZR2 and maintain the factory DSSV shocks? Then check out the BDS 4-inch suspension lift kit. Designed to improve stance, performance, and capability, this lift kit includes everything necessary to set your ZR2 Colorado up right with clearance for up to 35″ tires. Specifically engineered strut spacers are supplied to correctly position the DSSV coilovers to set ride height and achieve clearance throughout suspension travel.
This kit takes advantage of BDS’s tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes top mounted strut spacers, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar links, bump stop extensions, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.
High Clearance Crossmembers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.
Features & Benefits
- Retains DSSV Dampers
- High clearance crossmember design maximizes ground clearance
- Robust steering knuckles maintain ESC system compliance
- HD skid plate system improved offroad protection
- Multipoint differential relocation brackets to secure the front axle and improve CV angles
- Factory Protection Plus drivetrain warranty included
Recommended Tires & Wheels
(Trimming may be required)
- 295 / 70 with 17 x 8 and 4.5 in. Backspace
- 305 / 70 with 17 x 9 and 4.5 in. Backspace
- 35 x 12.5 with 20 x 9 and 5 in. Backspace
IMPORTANT NOTES
- Will fit gas and diesel models
- Inner Fender trimming required
- Minor welding required
- Electronic assisted steering system is sensitive to out of round, unbalanced, and more aggressive tread pattern tires. High speed steering wheel feedback can occur.
- Stock 17″ and 18″ wheels cannot be reinstalled with the lift kit. Aftermarket 20″ wheels with a maximum 5.25″ backspacing are recommended. Certain wheel and tire combinations will require weld on steering stops, these are included in the kit. See end of instructions sheet for details on installation.
More info
- Front Lift Method : Cross-Member
- Front Lift Height : 4″
- Rear Lift Method : Block
- Rear Lift Height : 4″
- Shocks Included : No
- Lift Height : 4-5.5″
Specifications:
| Description_MKT | High Clearance Crossmembers |
| Description_MKT | BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection. |
| Description_MKT | Heavy Duty Steering Knuckles |
| Description_MKT | BDS corrects steering geometry at the new taller ride height using a pair of high-strength CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility. |
| Description_SHO | Suspension lift kit |
| Description_ASC | Will fit gas and diesel models |
| Description_ASC | Inner Fender trimming required |
| Description_ASC | Minor welding required |
| Description_ASC | Electronic assisted steering system is sensitive to out of round unbalanced and more aggressive tread pattern tires. High speed steering wheel feedback can occur. |
| Description_ASC | Stock 17″ and 18″ wheels cannot be reinstalled with the lift kit. Aftermarket 20″ wheels with a maximum 5.25″ backspacing are recommended. Certain wheel and tire combinations will require weld on steering stops these are included in the kit. See end of instructions sheet for details on installation. |
| Description_DES | 2017-2022 Chevrolet Colorado ZR2 4in System |
| Description_EXT | 2017-2022 Chevrolet Colorado ZR2 4in System |
| Description_FAB | Retains DSSV Dampers |
| Description_FAB | High clearance crossmember design maximizes ground clearance |
| Description_FAB | Robust steering knuckles maintain ESC system compliance |
| Description_FAB | High-strength replacement upper control arms provide durability and serviceability |
| Description_FAB | HD skid plate system improved offroad protection |
| Description_FAB | Multipoint differential relocation brackets to secure the front axle and improve CV angles |
| Description_FAB | Factory Protection Plus drivetrain warranty included |
| Description_MKT | Want to lift your Colorado ZR2 and maintain the factory DSSV shocks? Then check out the BDS 4-inch suspension lift kit. Designed to improve stance performance and capability this lift kit includes everything necessary to set your ZR2 Colorado up right with clearance for up to 35″ tires. Specifically engineered strut spacers are supplied to correctly position the DSSV coilovers to set ride height and achieve clearance throughout suspension travel. |
| Description_MKT | This kit takes advantage of BDS’s tried and true high-clearance design for improved ground clearance strength and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes top mounted strut spacers high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar links bump stop extensions CV spacers supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it. |
| Description_MKT | In the rear BDS offers a heavy duty fabricated lift block to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts and precision tuned NX2 Nitro or premium FOX 2.0 Performance Series shocks. |
| Description_DEF | Suspension Lift Kit |
